2024 Honda Civic Interactive Fuse Box Diagrams
2024 Honda Civic – Engine Compartment Fuse Box Diagram
| 🔢 No. | 🔌 Type | 📝 Description |
|---|---|---|
| 1 | Fuse 125A | (BATTERY) Battery and charging system 🔧 View problems with the alternator fuse… |
| 2 | Multi fuse block MUSB | (–) |
| 2 | Multi fuse block MUSB | (–) |
| 2 | Multi fuse block MUSB | F/BOX OPTION |
| 2 | Multi fuse block MUSB | (–) |
| 2 | Multi fuse block MUSB | F/BOX OPTION2 |
| 2 | Multi fuse block MUSB | (DC/DC2) DC to DC transformer 400 watts |
| 2 | Multi fuse block MUSB | F/BOX MAIN |
| 3 | Multi fuse block MUSB | (–) |
| 3 | Multi fuse block MUSB | (–) |
| 3 | Multi fuse block MUSB | (–) |
| 3 | Multi fuse block MUSB | (RR DEFROSTER) Rear window defogger |
| 3 | Multi fuse block MUSB | (–) |
| 3 | Multi fuse block MUSB | (HTR MTR) AC blower motor |
| 3 | Multi fuse block MUSB | (–) |
| 4 | Multi fuse block MUSB | (–) |
| 4 | Multi fuse block MUSB | (ABS/VSA MTR) ABS / Vehicle Stability Assist |
| 4 | Multi fuse block MUSB | (DC/DC) DC to DC transformer 400 watts |
| 4 | Multi fuse block MUSB | (–) |
| 4 | Multi fuse block MUSB | (IG MAIN) Protects several circuits |
| 4 | Multi fuse block MUSB | (–) |
| 4 | Multi fuse block MUSB | R/M2 |
| 5 | Multi fuse block MUSB | ST MAGNETIC SW |
| 5 | Multi fuse block MUSB | (WIPER) Wipers |
| 5 | Multi fuse block MUSB | (EPS) Electric Power Steering |
| 5 | Multi fuse block MUSB | R/M1 |
| 5 | Multi fuse block MUSB | (ABS/VSA FSR) ABS / Vehicle Stability Assist |
| 5 | Multi fuse block MUSB | (MAIN FAN) Radiator fan |
| 5 | Multi fuse block MUSB | F/BOX MAIN2 |
| 6 | Fuse FMM/MCase 30A | (SUB FAN) Cooling fan motor 🌬️ View problems with the cooling fan fuse… |
| 7 | Fuse FMM/MCase 30A | (IG MAIN2) Protects several circuits |
| 8 | Fuse MINI | (–) |
| 9 | Fuse MINI 30A | EVP [Not available on all models] |
| 10 | Fuse MINI 7.5A | AUDIO SUB [Not available on all models] 🎵 View problems with the radio fuse… |
| 11 | Fuse MINI | (–) |
| 12 | Fuse MINI | (–) |
| 13 | Fuse MINI 10A | H/STRG [Not available on all models] |
| 14 | Fuse MINI | (–) |
| 15 | Fuse MINI 10A | FR FOG [Not available on all models] 💡 View problems with the fog light fuse… |
| 16 | Fuse MINI 10A | MG CLUTCH |
| 17 | Fuse MINI 15A | WASHER |
| 18 | Fuse MINI 10A | HORN 🔊 View problems with the horn fuse… |
| 19 | Fuse MINI 15A | BACK UP |
| 20 | Fuse MINI 15A | AUDIO [Not available on all models] 🎵 View problems with the radio fuse… |
| 21 | Fuse MINI | (–) |
| 22 | Fuse MINI 15A | DBW (Drive-by-Wire) |
| 23 | Fuse MINI 20A | EOP [Not available on all models] |
| 24 | Fuse MINI 10A | BACKUP FI-ECU |
| 25 | Fuse MINI 15A | IGP 🔑 View problems with the starter fuse… |
| 26 | Fuse MINI 15A | TCU (Transmission Control Unit) |
| 27 | Fuse MINI 15A | LCM L |
| 28 | Fuse MINI 15A | INJ [Not available on all models] |
| 29 | Fuse MINI 10A | STOP 🚦 View problems with the brake light fuse… |
| 30 | Fuse MINI 15A | LCM R |
| 31 | Fuse MINI 15A | IG COIL |
| 32 | Fuse MINI | (–) |
| 33 | Fuse MINI 15A | HAZARD |
| 34 | Fuse MINI 7.5A | AUDIO SUB VST [Not available on all models] 🎵 View problems with the radio fuse… |
| 35 | Fuse MINI | (–) |
| 36 | Fuse MINI 30A | AUDIO VST MAIN |
| 37 | Fuse MINI 30A | BACKUP2 |
| 38 | Fuse MINI | (–) |
| 39 | Fuse MINI | (–) |
| 40 | Fuse MINI 10A | VBACT [Not available on all models] |
| 41 | Fuse MINI 10A | IGPS [LAF] |
| 42 | Fuse MINI 7.5A | IG1 MON2 |

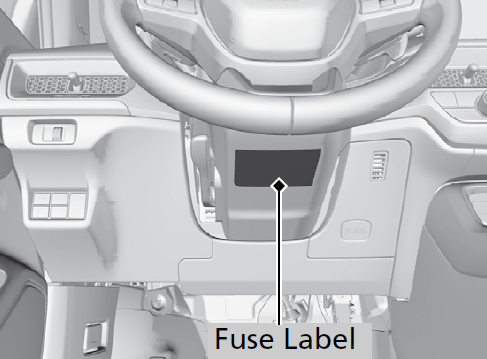

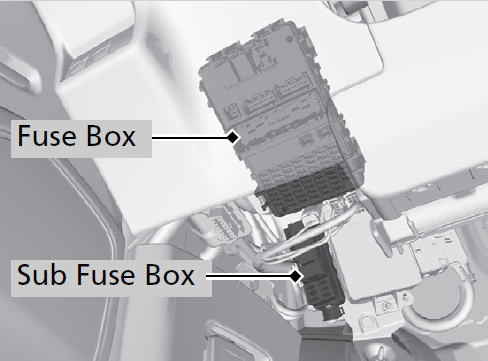

2024 Honda Civic – Interior Compartment Fuse Box Diagram
| 🔢 No. | 🔌 Type | 📝 Description |
|---|---|---|
| 1 | Fuse MINI 20A | P/W DR |
| 2 | Fuse MINI 20A | P/W AS |
| 3 | Fuse MINI 20A | P/W RR R |
| 4 | Fuse MINI 20A | P/W RR L |
| 5 | Fuse MINI 10A | OPTION |
| 6 | Fuse MINI 10A | SRS |
| 7 | Fuse MINI 10A | T/G MTR / TRUNK ACT |
| 8 | Fuse MINI – | – |
| 9 | Fuse MINI 20A | FR ACC SOCKET |
| 10 | Fuse MINI 20A | DOOR LOCK |
| 11 | Fuse MINI 10A | METER |
| 12 | Fuse MINI 10A | OPTION3 (ST CUT) |
| 13 | Fuse MINI 10A | OPTION2 (RR WIP) [Not available on all models] |
| 14 | Fuse MINI 10A | OPTION6 (VB SOL) |
| 15 | Fuse MINI 10A | DR DOOR UNLOCK |
| 16 | Fuse MINI 20A | SUNROOF [Not available on all models] 🔍 View problems with the sunroof fuse… |
| 17 | Fuse MINI 10A | SBW1 [Not available on all models] |
| 18 | Fuse MINI – | – |
| 19 | Fuse MINI – | – |
| 20 | Fuse MINI 10A | RR FOG [Not available on all models] 🔍 View problems with the fog light fuse… |
| 21 | Fuse MINI 20A | CARGO ACC SOCKET [Not available on all models] |
| 22 | Fuse MINI 10A | SMART |
| 23 | Fuse MINI 10A | DR DOOR LOCK |
| 24 | Fuse MINI 7.5A | SBW2 [Not available on all models] |
| 25 | Fuse MINI 10A | IMG |
| 26 | Fuse MINI 10A | SRS |
| 27 | Fuse MINI 20A | ACG/DN/ST CUT RLY |
| 28 | Fuse MINI 10A | OPTION5 |
| 29 | Fuse MINI 15A | FUEL PUMP 🔍 View problems with the fuel pump fuse… |
| 30 | Fuse MINI 10A | L SIDE DOOR UNLOCK |
| 31 | Fuse MINI 10A | R SIDE DOOR UNLOCK |
| 32 | Fuse MINI – | – |
| 33 | Fuse MINI – | – |
| 34 | Fuse MINI – | – |
| 35 | Fuse MINI – | – |
| 36 | Fuse MINI 20A | OPTION3 (SUNSHADE) [Not available on all models] |
| 37 | Fuse MINI 15A | IGA2 [Not available on all models] |
| 38 | Fuse MINI – | – |
| 39 | Fuse MINI 10A | R SIDE DOOR LOCK |
| 40 | Fuse MINI 20A | P/SEAT REC / RR HI [Not available on all models] |
| 41 | Fuse MINI 20A | P/SEAT SLIDE / FR HI [Not available on all models] |
| 42 | Fuse MINI – | – |
| 43 | Fuse MINI 10A | A/C 🔍 View problems with the air conditioning fuse… |
| 44 | Fuse MINI 10A | DRL 🔍 View problems with the headlight fuse… |
| 45 | Fuse MINI 10A | ACC |
| 46 | Fuse MINI 10A | ACC KEY LOCK |
| 47 | Fuse MINI 10A | L SIDE DOOR LOCK |
2024 Honda Civic – Sub Fuse Box Diagram
| 🔠 No. | 🔌 Type | 📝 Description |
|---|---|---|
| A | Fuse 10A | (BACKUP2 MAIN) Backup lights |
| B | Fuse 7.5A | (AUDIO SUB VST [Not available on all models]) Audio system 🔍 View problems with the radio fuse… |
| C | Fuse 10A | ACC VST |
| D | Fuse 10A | VST 1 |
| E | Fuse 15A | AUDIO VST |
| F | Fuse 20A | (EOP [Not available on all models]) Engine Oil Pressure Sensor |
| G | Fuse | (–) – |
| H | Fuse 10A | VST 2 |
-
🔌 Fuse Locations & Replacement Guide
If any electrical components stop functioning, set the power mode to VEHICLE OFF and inspect the applicable fuses.

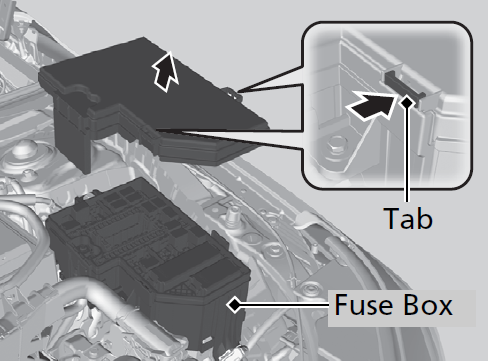

📍 Engine Compartment Fuse Box
-
Location: Near the battery.
-
Access: Press the tabs to open the fuse box cover.
-
Fuse Map: Refer to the diagram on the inside of the cover. Match the fuse number with the chart to locate and identify the fuse.
🔧 Inspecting and Replacing Fuses
-
Power Off First
Ensure the power mode is set to VEHICLE OFF. Turn off all lights and accessories. -
Remove the Fuse Box Cover
Carefully lift the cover of the fuse box to access the fuses. -

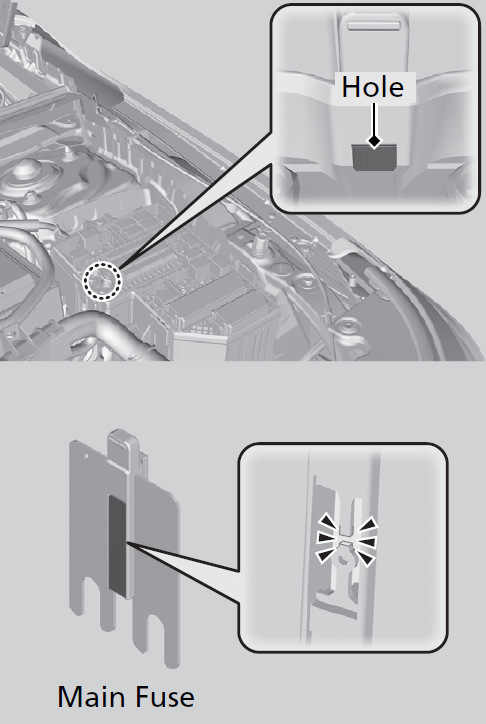

Check the Main Fuse
-
Found in the engine compartment fuse box.
-
View through the inspection hole.
-
If blown, it must be replaced.
-
-

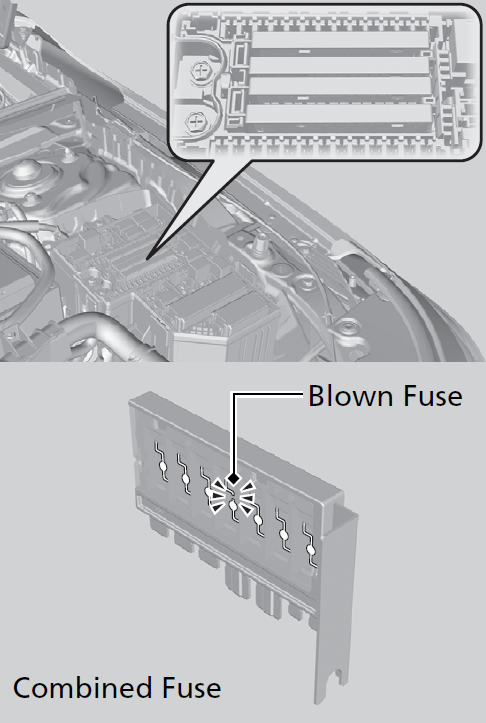

Check Combined Fuses
-
Also located in the engine compartment.
-
Inspect the gap between the fuses.
-
Blown combined fuses should be replaced by a qualified technician.
-
-

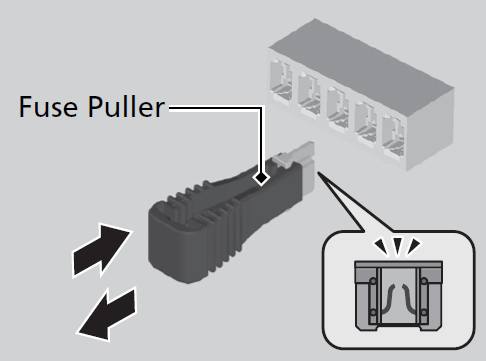

Inspect Standard Fuses
-
Located in both the engine compartment and vehicle interior.
-
Use the fuse puller (located on the back of the fuse box cover) to remove the fuse.
-
Replace with a new fuse of the same amperage rating.
-
NOTICE: Never replace a fuse with one that has a higher amperage rating. This can cause severe damage to the electrical system and pose a safety risk.
📘 Helpful Tips
-
Use the fuse charts provided to identify the correct fuse location and amperage.
-
Always replace a blown fuse with a spare fuse of the same specified amperage.
-
The fuse puller tool is located on the inside of the engine compartment fuse box cover for convenience.
-
