2024 Ford F-150 Interactive Fuse Box Diagrams
2024 Ford F-150 Fuse Box – Under Hood Interactive Fuse Box Diagram
| π Type | π Description |
|---|---|
| Fuse FMM/MCASE 40A | 1 – Climate control module |
| Fuse FMM/MCASE 30A | 3 – Body control module – battery power in feed 1 |
| Fuse FMM/MCASE 30A | 4 – Fuel pump |
| Fuse MINI 20A | 6 – Vehicle power 4 |
| Fuse MINI 10A | 7 – Vehicle power 3 |
| Fuse MINI 20A | 8 – Vehicle power 2 |
| Fuse MINI 25A | 10 – Powertrain control module. |
| Fuse FMM/MCASE 40A | 13 – Blower motor. |
| Fuse MINI 15A | 15 – Multi access tailgate switch. |
| Fuse MINI 5A | 21 – Power steering module. |
| Fuse MINI 30A | 22 – Interior power distribution box – run/start power. |
| Fuse MINI 5A | 23 – Electric brake booster. |
| Fuse MINI 5A | 24 – Powertrain control module. |
| Fuse MINI 10A | 25 – Air quality/Oxides of nitrogen sensor. |
| Fuse FMX/JCASE 50A | 28 – Electric brake booster. |
| Fuse FMX/JCASE 50A | 29 – Electric brake booster. |
| Fuse FMM/MCASE 40A | 30 – Rear heated windshield. |
| Fuse FMM/MCASE 30A | 31 – Trailer tow 1. |
| Fuse FMM/MCASE 20A | 32 – Power outlet 1. |
| Fuse FMM/MCASE 20A | 33 – Power outlet 2. |
| Fuse FMM/MCASE 15A | 34 – Upfitter 1. |
| Fuse FMM/MCASE 20A | 37-108 – Trailer brake control module. |
| Fuse FMM/MCASE 30A | 38 – Body control module – power feed 3. |
| Fuse FMM/MCASE 30A | 42 – Body control module – power feed 4. |
| Fuse FMX/JCASE 50A | 47-84 – Electric fan 1. |
| Fuse FMX/JCASE 50A | 49-83 – Electric fan 2. |
| Fuse FMM/MCASE 40A | 50 – All wheel drive module. |
| Fuse FMM/MCASE 30A | 55 – Trailer tow park lamps. |
| Fuse FMM/MCASE 15A | 56-61 – Upfitter 2. |
| Fuse FMM/MCASE 25A | 60-86 – Rear sliding window. |
| Fuse MINI 25A | 62-168 – Horn. |
| Fuse MINI 15A | 63-134 – Right headlamp. |
| Fuse MINI 10A | 64 – Engine cooling valve. |
| Fuse MINI 15A | 65 – Traction battery control. |
| Fuse FMM/MCASE 20A | 67 – Transmission. |
| Fuse FMM/MCASE 30A | 69 – Front wiper motor. |
| Fuse FMM/MCASE 30A | 72-121 – Fuel pump 2. |
| Fuse MINI 15A | 82 – Hybrid powertrain control module. |
| Fuse MINI 10A | 95 – Upfitter 3. |
| Fuse MINI 10A | 100 – Auxiliary water pump. |
| Fuse FMX/JCASE 50A | 105 – Customer interface module 2. |
| Fuse FMM/MCASE 20A | 107 – Power outlet 3. |
| Fuse MINI 5A | 124 – Rain switch. |
| Fuse MINI 10A | 125 – Upfitter 4. |
| Fuse MINI 5A | 138 – Upfitter 5. |
| Fuse MINI 5A | 139 – Upfitter 6. |
| Fuse MINI 10A | 146 – Traction battery control module. |
| Fuse MINI 10A | 159 – Diagnostic connector. |
| Fuse MINI 10A | 160 – Motor electric coolant pump. |
| Fuse MINI 5A | 170 – DC/DC power. |
| Relay | R04-R36 – Electronic fan relay 1. |
| Relay | R06-R35 – Electronic fan relay 3. |
|
Fuse MINI 5A |
U3 – Hybrid powertrain control module. |
|
Fuse MINI 20A |
U4 – Rear seat climate control. |
|
Fuse MINI 10A |
U5 – Hybrid powertrain control module, Powertrain control module. |
|
Fuse MINI 15A |
U19 Spotlight. |
|
Fuse MINI 5A |
U21 Adaptive front light. |
|
Fuse MINI 15A |
U22 Left headlamp. |
|
Fuse FMM/MCASE 15A |
U30 Fuel injectors. |
|
Fuse FMM/MCASE 30A |
U31 Trailer TowΒ braking. |
|
Fuse FMM/MCASE 30A |
U34 Starter. |
|
Fuse FMX/JCASE 40A |
U40 Intercooler fan. |
|
Fuse FMM/MCASE 15A |
U61 Charge air pump. |
2024 Ford F-150 Fuse Box – Interior Interactive Fuse Box Diagram
| π Type | π’ No. | π Description |
|---|---|---|
| Fuse MINI 25A | 3 | Multi-contour seat module. |
| Fuse MINI 5A | 6 | Overhead console combined sensing module. |
| Fuse MINI 10A | 7 | USB charge port 3. |
| Fuse MINI 15A | 8 | Steering column control, Heated steering wheel. |
| Fuse MINI 5A | 11 | Instrument cluster display. |
| Fuse MINI 5A | 13 | Driver monitor. |
| Fuse MINI 5A | 14 | Electrochromatic rear view mirror. |
| Fuse FMM/MCASE 40A | 15 | Driver seat. |
| Fuse MINI 5A | 16 | Climate controlled rear seats. |
| Fuse MINI 10A | 17 | USB charging port 1. |
| Fuse MINI 5A | 18 | Interior temperature sensor. |
| Fuse MINI 5A | 19 | Tailgate brake lamp. |
| Fuse FMM/MCASE 30A | 21 | Tailgate. |
| Fuse FMM/MCASE 30A | 22 | Passenger seat. |
| Fuse MINI 15A | 23 | Adjustable pedals. |
| Fuse MINI 10A | 24 | Gear shift module. |
| Fuse MINI 7.5A | 25 | Wireless charger. |
| Fuse MINI 20A | 26 | Audio control module. π |
| Fuse MINI 30A | 27 | Amplifier. |
| Fuse MINI 15A | 28 | Voice control module. |
| Fuse MINI 20A | 30 | Adaptive driver assistance systems. |
| Fuse MINI 15A | 31 | Towing trailer connector. |
| Fuse MINI 10A | 32 | Navigation. |
| Fuse MINI 10A | 33 | Terrain management switch. |
| Fuse MINI 10A | 34 | Driver power window switch. |
| Fuse MINI 30A | 35 | Driver door control module. |
| Fuse MINI 30A | 36 | Moonroof. π |
| Fuse MINI 30A | 37 | Passenger door control module. |
| Fuse MINI 10A | 39 | Rear sliding window, Moonroof, Driver power window. |
| Fuse MINI 5A | 40 | High mounted camera. |
| Fuse MINI 5A | 41 | Exterior mirrors. |
| Fuse MINI 7.5A | 42 | Cell phone passport module. |
| Fuse MINI 5A | 43 | Ignition switch. |
| Fuse MINI 5A | 44 | Climate control. |
| Fuse MINI 5A | 45 | Head up display. |
| Fuse MINI 5A | 46 | Electronic toll collection. |
| Fuse MINI 7.5A | 47 | Steering column control module. |
| Fuse 30A | 61 | Rear power window switch. |

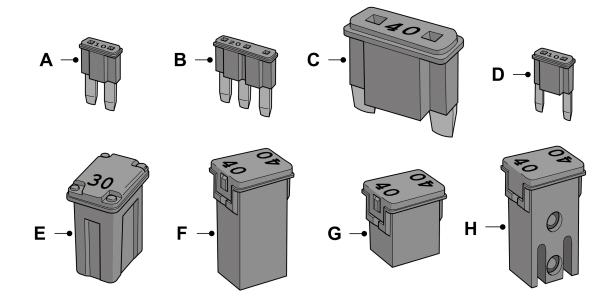

Fuses – Identifying Fuse Types

A- Micro 2.
B- Micro 3.
C- Maxi.
D- Mini.
E- M Case.
F- J Case.
G- J Case Low Profile.
H- Slotted M Case.
IDENTIFYING THE FUSES IN THE INTERIOR FUSE BOX

| π’ Fuse Location | β‘ Fuse Rating | π§ Protected Component |
|---|---|---|
| 3 | 7.5 A | Wireless charger |
| 6 | 10 A | Driver power window switch |
| 7 | 10 A | Gear shift module |
| 8 | 7.5 A | Cell phone passport module |
| 9 | 5 A | Overhead console combined sensing module |
| 10 | 25 A | Multi-contour seat module |
| 12 | 5 A | Climate control |
| 13 | 7.5 A | Steering column control module |
| 19 | 5 A | Head up display |
| 20 | 5 A | Ignition switch |
| 23 | 30 A | Driver door control module |
| 24 | 30 A | Moonroof |
| 26 | 30 A | Passenger door control module |
| 30 | 10 A | USB charging port 1 |
| 31 | 10 A | Terrain management switch |
| 32 | 20 A | Audio control module |
| 33 | 5 A | Instrument cluster display |
| 35 | 5 A | Electronic toll collection |
| 36 | 5 A | Interior temperature sensor |
| 37 | 15 A | Adjustable pedals |
| 38 | 5 A | Spare |
| 39 | 5 A | Driver monitor |
| 40 | 30 A | Amplifier |
| 41 | 10 A | Navigation |
| 42 | 15 A | Voice control module |
| 43 | 30 A | Tailgate |
| 44 | 40 A | Driver seat |
| 45 | 30 A | Passenger seat |
| 52 | 5 A | Trailer brake switch |
| 53 | 5 A | Climate controlled rear seats |
| 55 | 5 A | Electrochromatic rear view mirror |
| 60 | 10 A | Rear sliding window, Moonroof, Driver power window |
| 61 | 30 A | Rear power window switch |
| 70 | 20 A | Advanced driver assistance systems |
| 71 | 5 A | High mounted camera |
| 72 | 15 A | Towing trailer connector |
| 80 | 15 A | Steering column control module, Heated steering wheel |
| 101 | 10 A | USB charge port 3 |
IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX

| π’ Item | β‘ Rating | π§ Protected Component |
|---|---|---|
| 1 | 30 A | Body control module – battery power in feed 1 |
| 2 | 30 A | Body control module – battery power in feed 2 |
| 3 | 30 A | Body control module – power feed 3 |
| 4 | 50 A | Electric brake booster |
| 5 | 50 A | Customer interface module 1 |
| 6 | 40 A | Climate control module |
| 7 | 50 A | Electric brake booster |
| 8 | 30 A | Trailer tow 1 |
| 9 | 50 A | Customer interface module 2 |
| 10 | 30 A | Trailer tow braking |
| 13 | 40 A | All wheel drive module |
| 14 | 10 A | Hybrid powertrain control module, Powertrain control module |
| 15 | 25 A | Powertrain control module |
| 16 | 20 A | Vehicle power 2 |
| 17 | 10 A | Vehicle power 3 |
| 18 | 20 A | Vehicle power 4 |
| 19 | 20 A | Transmission |
| 22 | 15 A | Right headlamp |
| 23 | 15 A | Left headlamp |
| 24 | 30 A | Starter |
| 26 | 30 A | Fuel pump |
| 27 | 20 A | Power outlet 1 |
| 28 | 20 A | Power outlet 2 |
| 29 | 20 A | Power outlet 3 |
| 31 | 30 A | Front wiper motor |
| 32 | 5 A | Rain switch |
| 34 | 15 A | Multi-access tailgate switch |
| 36 | 30 A | Body control module – power feed 4 |
| 42 | 20 A | Trailer brake control module |
| 43 | 30 A | Interior power distribution box – run/start power |
| 46 | 20 A | Rear seat climate control |
| 47 | 15 A | Spotlight |
| 49 | 5 A | Electric brake booster |
| 50 | 5 A | Powertrain control module |
| 53 | 10 A | Air quality / NOx sensor |
| 54 | 40 A | Rear heated windshield |
| 59 | 25 A | Horn |
| 60 | 30 A | Trailer tow park lamps |
| 62 | 40 A | Blower motor |
| 63 | 10 A | Trailer tow connector |
| 66 | 25 A | Rear sliding window |
| 69 | 5 A | Power steering module |
| 70 | 10 A | Diagnostic connector |
| 75 | 50 A | Electric fan 1 |
| 76 | 50 A | Electric fan 2 |
| 79 | 5 A | Adaptive front light |
| 82 | 5 A | Hybrid powertrain control module |
| 84 | 15 A | Fuel injectors |
| 95 | 15 A | Hybrid powertrain control module |
| 98 | 10 A | Engine cooling valve |
| 146 | 10 A | Traction battery control module |
| 159 | 5 A | DC/DC power |
| 168 | 15 A | Traction battery control |
| 169 | 10 A | Motor electric coolant pump |
| 170 | 10 A | Auxiliary water pump |
| 172 | 30 A | Fuel pump 2 |
| 173 | 15 A | Upfitter 1 |
| 174 | 15 A | Upfitter 2 |
| 175 | 10 A | Upfitter 3 |
| 176 | 10 A | Upfitter 4 |
| 177 | 5 A | Upfitter 5 |
| 178 | 5 A | Upfitter 6 |
| 179 | 15 A | Charge air pump |
| 181 | 40 A | Intercooler fan |
