2013-2014 SsangYong Rexton Repair Manual

📌 Overview

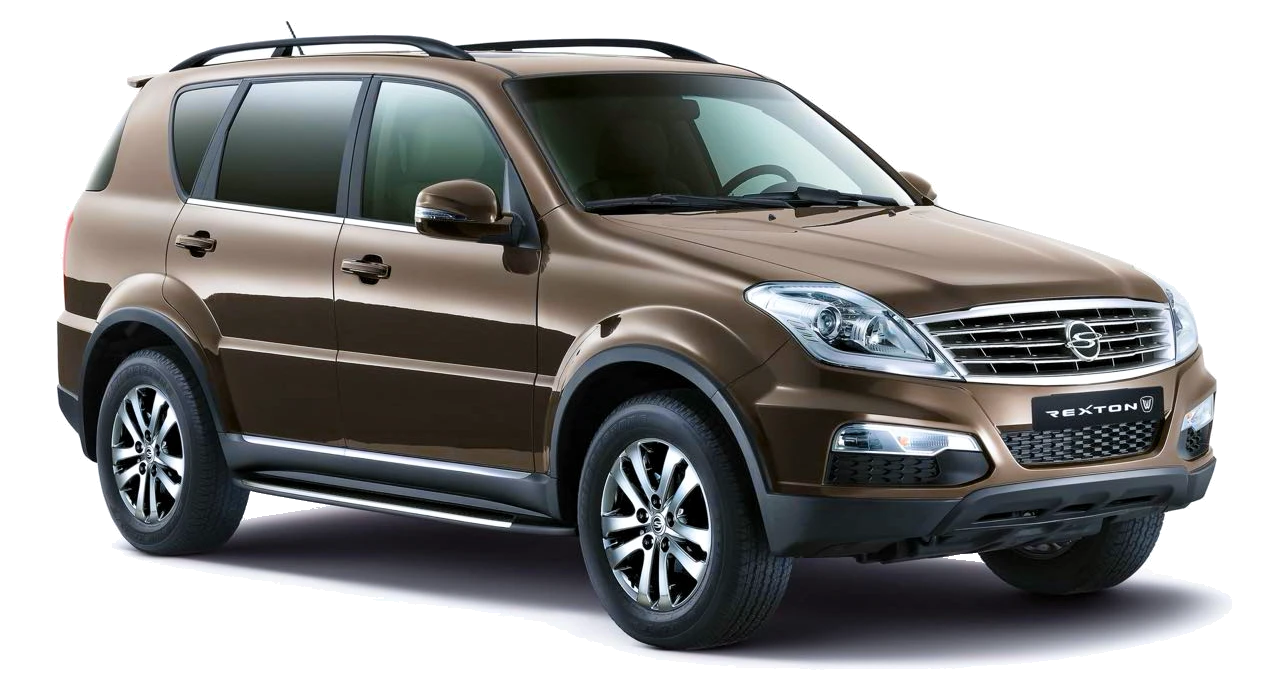

The 2013–2014 SsangYong Rexton W is a traditional, body-on-frame-style SUV vibe in a modern-ish wrapper: 7 seats, proper towing capability, and a diesel built for low-end pull.
In the UK market it stood out for one reason: serious towing capacity for the money, often quoted at 3,000 kg depending on variant.

Under the bonnet in most European/UK-spec 2013–2014 models: the 2.0 e-XDi diesel (Euro 5 era) rated around 155 PS and 360 Nm — exactly the kind of torque curve you want for caravans, trailers, boats, and horseboxes.

Technical Specs & Performance

⚙️ Powertrain (common UK/Europe spec)

•  Engine: 2.0-litre e-XDi diesel (Euro 5 era in Europe)
•  Power: ~155 PS (153 bhp / 114 kW)
• Torque: ~360 Nm
• Gearboxes: commonly 6-speed manual or 5-speed automatic
• Drivetrain: 2WD or 4WD depending on trim/market

🏎️ Performance (real-world expectations)

• 0–60 mph: approximately ~10–11 seconds (varies by transmission/weight; some sources are estimated).
• Top speed: around ~109 mph (175 km/h) (varies by spec).

🧱 Weight & towing

• Kerbweight (example UK test figure): ~2,128 kg
• Maximum towing limit (commonly quoted UK): 3,000 kg

📏 Dimensions (typical)

• Wheelbase: ~283.5 cm
• Length: ~475.5 cm
• Width: ~190.0 cm
• Height: ~184.0 cm
• Ground clearance: ~21.6 cm

1. Rising oil level (diesel dilution) / oil consumption concerns
   – Symptoms: Oil level creeping up on dipstick, diesel smell in oil, rough idle, increased regen frequency
   – Root Cause: DPF regeneration can introduce fuel into the oil; short trips worsen it. Some reviewers advise checking oil monthly.
   – Fix: Use correct oil spec; shorten oil-change intervals; ensure DPF regen completes; investigate injector/leak-down if severe
   – Cost to Fix: £120–£220 (oil & filter service) / £300–£900 (if DPF/injector diagnosis or repair needed)

• DPF clogging / forced regeneration
  – Symptoms: Loss of power, warning light, frequent fans running, poor MPG, limp mode on motorway inclines
  – Root Cause: Short-trip driving + soot loading; EGR issues can accelerate DPF load
  – Fix: Proper diagnostic scan; forced regen if safe; DPF clean (off-car if needed); address EGR or boost leaks causing excessive soot
  – Cost to Fix: £120–£250 (forced regen/diagnosis) / £350–£800 (professional clean) / £900–£1,800 (replacement)
• EGR valve sticking / soot buildup (limp mode)
  – Symptoms: Hesitation, poor low-end response, engine light, limp mode, smoke under load
  – Root Cause: Exhaust soot fouls EGR mechanism; common on modern diesels if driven gently/short distances
  – Fix: Clean or replace EGR; update ECU software if available; verify boost hoses & intake condition
  – Cost to Fix: £180–£450 (clean/replace EGR depending on access) / £450–£900 (if intake cleaning included)
  EGR-related limp mode is commonly discussed on owner forums for diesel turbo SUVs.
• Turbo boost leak (hoses/clamps) / whistle
  – Symptoms: Whistling under boost, sluggish acceleration, underboost codes, smoke, oil mist around charge pipes
  – Root Cause: Split intercooler hose, loose clamps, cracked rubber; leaks can trigger underboost and extra soot
  – Fix: Pressure test intake; replace damaged hose(s); re-clamp; check airbox seating and pipework
  – Cost to Fix: £90–£220 (hose/clamps) / £250–£650 (if intercooler or multiple pipes involved)
  Example troubleshooting guidance highlights checking turbo intake hose clamps and airbox seating.
• Injector wear / rough running
  – Symptoms: Hard starting, uneven idle, diesel knock, smoke, poor MPG, misfire-like shudder under load
  – Root Cause: High-pressure diesel injectors wear; contaminated fuel can accelerate issues
  – Fix: Injector balance test; replace/overhaul failing injectors; replace fuel filter; confirm rail pressure health
  – Cost to Fix: £250–£450 (diagnosis + one injector) / £900–£1,800 (set of injectors fitted, varies widely)
• Cooling system leaks (hoses/radiator/thermostat)
  – Symptoms: Coolant smell, low coolant warning, overheating in traffic, weak cabin heat, pink/white residue at joints
  – Root Cause: Ageing hoses, brittle plastic fittings, thermostat housing seepage
  – Fix: Pressure test; replace leaking hose/radiator/thermostat; refill with correct coolant mix and bleed properly
  – Cost to Fix: £120–£260 (minor hose) / £300–£900 (radiator/thermostat and labour)
• Front suspension wear (ball joints/bushes) & steering knock
  – Symptoms: Clunks over bumps, vague steering, uneven tyre wear, wandering, MOT advisories
  – Root Cause: Heavy SUV load + UK roads = ball joint and bush wear; some SsangYong models have had ball-joint related safety actions historically (model-dependent).
  – Fix: Inspect play; replace worn ball joints/control arms; align wheels afterwards
  – Cost to Fix: £220–£520 (one side) / £450–£1,000 (both sides + alignment)
  UK recall databases show ball-joint related recall actions on SsangYong Rexton line in some years/variants. Always check by reg/VIN.
• Differential “groan” / driveline noise
  – Symptoms: Groaning while cornering, humming at speed, vibration under load, clonk when taking up drive
  – Root Cause: Diff fluid degradation, worn bearings, propshaft U-joints, or rear diff wear (especially with towing)
  – Fix: Check diff/transfer oil condition; replace fluids first; inspect bearings/U-joints; rebuild diff if required
  – Cost to Fix: £120–£260 (fluids service) / £600–£1,800 (bearing/diff rebuild depending on damage)
  Used-car inspection advice notes groaning while cornering can point to a damaged differential.
• Automatic transmission shudder/harsh shifts (service-related)
  – Symptoms: Delayed engagement, flare between gears, shudder at low speed, harsh downshifts when warm
  – Root Cause: Old ATF, filter restriction, adaptation issues; towing without frequent ATF changes accelerates wear
  – Fix: Correct ATF service (fluid + filter if applicable); scan for TCM faults; consider cooler check if towing often
  – Cost to Fix: £220–£450 (ATF service) / £900–£2,500 (valve body/torque converter/transmission repair)
• Brake corrosion / sticking calipers (heavier SUV pattern)
  – Symptoms: Pulling under braking, vibration, hot wheel smell, poor MPG, MOT brake advisories
  – Root Cause: Infrequent use, winter salt, seized slider pins, worn pads/discs on a heavy vehicle
  – Fix: Strip/clean sliders; replace discs/pads; rebuild or replace calipers if seized; brake fluid change as scheduled
  – Cost to Fix: £180–£420 (pads/discs axle) / £350–£900 (with caliper work)

Top 10 Common Electrical Issues (Reported by Owners)

1. Battery drain / weak battery
   – Symptoms: Slow crank, random warning lights, car struggles after sitting 2–3 days
   – Root Cause: Ageing battery, parasitic draw (aftermarket accessories, modules not sleeping), weak alternator output
   – Fix: Battery test; charging system test; parasitic draw test; repair faulty module/circuit if draw is excessive
   – Cost to Fix: £120–£220 (battery) / £180–£600 (diagnosis + alternator/repair)
2. Glow plug / glow control faults (diesel starting)
   – Symptoms: Hard cold start, rough first minute, glow light flashing, fault codes stored
   – Root Cause: Failed glow plugs or glow control module
   – Fix: Test resistance; replace glow plugs as a set if multiple are weak; verify glow module output
   – Cost to Fix: £180–£420 (set of plugs fitted) / £300–£650 (with module)
3. Central locking / door lock actuator failure
   – Symptoms: One door won’t lock/unlock, intermittent remote operation, door re-locking itself
   – Root Cause: Actuator motor wear or internal latch micro-switch issues
   – Fix: Scan body module for lock errors; replace actuator/latch assembly on affected door
   – Cost to Fix: £180–£450 per door (parts + labour)
4. Window regulator or switch faults
   – Symptoms: Window slow, stuck, drops crooked, switch works intermittently
   – Root Cause: Regulator cable wear, motor fatigue, switch contact wear
   – Fix: Inspect tracks; replace regulator/motor if binding; replace switch if signal is inconsistent
   – Cost to Fix: £150–£420 (per window)
5. ABS/ESP warning light (wheel speed sensor / wiring)
   – Symptoms: ABS/ESP lights on, traction control disabled, occasional speedo weirdness
   – Root Cause: Wheel speed sensor failure, damaged sensor wiring, corroded reluctor ring/hub tone ring
   – Fix: Live-data scan; inspect sensor wiring; replace sensor or hub assembly if tone ring is integrated
   – Cost to Fix: £140–£320 (sensor) / £300–£750 (hub/bearing assembly)
6. Parking sensor faults
   – Symptoms: Constant beep, “parking assist” error, sensors clicking inconsistently
   – Root Cause: Water ingress, sensor corrosion, bumper harness damage
   – Fix: Identify dead sensor (listening test + scan); replace faulty sensor; repair harness if needed
   – Cost to Fix: £90–£260 (sensor) / £200–£450 (harness/bumper labour)
7. Infotainment/Bluetooth dropouts
   – Symptoms: Bluetooth won’t pair, random disconnects, frozen head unit
   – Root Cause: Older firmware, failing module, poor power/ground, internal head unit wear
   – Fix: Reset/update if available; check grounds; repair/replace head unit if persistent
   – Cost to Fix: £0–£80 (software/reset) / £250–£1,200 (repair/replace head unit)
8. Blower motor resistor / fan speed issues
   – Symptoms: Fan works only on max, intermittent cabin airflow, burning smell near glovebox area
   – Root Cause: Resistor pack overheating or blower motor drawing too much current
   – Fix: Replace resistor pack; test blower motor current draw; replace blower if out of spec
   – Cost to Fix: £120–£320
9. Airbag/SRS warning light (clock spring / seat connector)
   – Symptoms: SRS light on, horn/steering controls not working (sometimes), MOT failure risk
   – Root Cause: Clock spring wear, seat connector corrosion/loose plug under seats
   – Fix: Proper SRS scan; repair connectors; replace clock spring if steering controls affected
   – Cost to Fix: £120–£450
10. 4WD selector/transfer case control faults (electrical side)
    – Symptoms: 4WD won’t engage/disengage, blinking 4WD light, binding in turns if stuck engaged
    – Root Cause: Switch failure, actuator connector issues, control module faults, vacuum/solenoid issues depending on system design
    – Fix: Scan 4WD system; test switch and actuator circuits; inspect vacuum lines/solenoids if equipped
    – Cost to Fix: £150–£450 (switch/solenoid) / £450–£1,500 (actuator/module)

Pros & Cons

Similar “family + tow + SUV” alternatives owners cross-shop in the UK market:

• Toyota Land Cruiser (J200) ↗
• Land Rover Discovery 4 / LR4 ↗
• Hyundai Santa Fe (2013–2018) ↗
• Kia Sorento (2013) ↗
• Nissan Pathfinder (2013–2014) ↗

1. UK Safety Recall Check (Must-Do) — Run your registration/VIN through the official GOV.UK recall service before purchase.
2. Suspension ball joint / loss of control (model-year dependent) — SsangYong Rexton line has had ball-joint related safety recall entries in UK databases (coverage varies by build years/variants). Always confirm your exact vehicle.
3. Differential/steering noise advisory — Used-car checks mention groaning while cornering can indicate differential damage; treat as a safety/handling inspection point.
4. Oil level monitoring advisory — Some reviews stress monitoring oil level regularly; rising oil can indicate diesel dilution/regen issues.
5. Towing compliance advisory — If towing near the limit, confirm VIN plate train weights, towbar rating, and noseweight; UK towing reviews list key limits (e.g., towball limit).
6. DPF regeneration advisory — If you do short trips, expect higher DPF/EGR maintenance risk. Ensure any DPF warning lights are diagnosed properly before purchase (avoid “delete” bodges).
7. Turbo hose/air intake leak advisory — Whistling + underboost can be a simple hose/clamp issue; inspect pipework and airbox seating during pre-purchase checks.
8. Brake corrosion advisory — Heavy SUVs can develop corroded lines and thin pads; review MOT history and inspect pipes/pads/discs (common UK ownership pattern).
9. ECU/TCU scan advisory — Because many “problems” are sensor/regen related, scan modules for stored faults even if the dash is clean (pending codes matter).
10. SRS/airbag warning advisory — Any SRS light should be treated as a must-fix for safety/MOT; scan and repair properly (connectors/clock spring patterns).

 Engine Control Module (ECM) — 10 Codes

Transmission Control Module (TCM) — 10 Codes

 ABS / ESC (Brake System) — 10 Codes

 SRS Airbag System — 10 Codes

 Body Control / CAN Communication — 10 Codes
