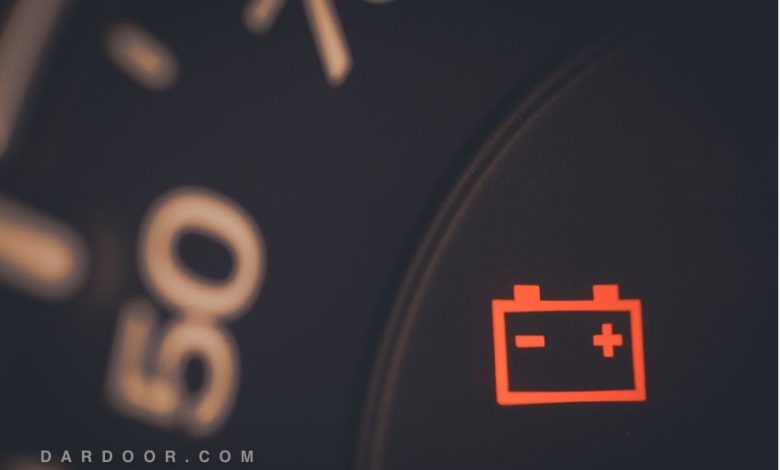

Comprehensive Guide: Diagnosing & Resolving Your Car’s Battery Indicator Light

1.1 Battery Fundamentals

Your car battery is a rechargeable lead‑acid powerhouse designed to provide high current for engine cranking and to supply stable voltage (nominally 12 V) for all onboard electronics. A typical 12 V lead‑acid battery consists of six cells, each producing ~2.1 V under load. Key components include:

• Positive and Negative Plates: Thin lead grids coated with lead dioxide (PbO₂) and sponge lead (Pb).
• Electrolyte Solution: Sulfuric acid (H₂SO₄) dissolved in water, enabling ion exchange.
• Cell Separators: Porous barriers (often fiberglass) that prevent shorting between plates.

Under normal operating conditions, the battery’s state of charge (SoC) should be between 75 % and 100 % when the vehicle is running, with resting voltage (engine off) between 12.6 V and 12.8 V.

1.2 Alternator & Regulator Basics

The alternator is a belt‑driven rotary generator that converts mechanical energy from the engine into electrical energy. Its principal parts are:

• Rotor & Stator: The rotor (field winding) spins inside the stator (stationary windings), inducing alternating current (AC).
• Diode Rectifier: Converts AC output to direct current (DC) suitable for charging the battery.
• Voltage Regulator: Monitors system voltage and adjusts rotor field current to maintain a target output (typically 13.8 V–14.4 V).

When functioning correctly, the alternator must supply sufficient current (often 70 A–150 A depending on load) to cover all electrical demands and simultaneously charge the battery.

1.3 Wiring & Grounding

Robust electrical connections are vital. Main battery cables (positive and negative) feature heavy gauge (often 4 AWG–0 AWG) conductors to minimize voltage drop. Ground paths—between engine block, chassis, and battery negative—must be free of corrosion and tight to ensure reliable sensor and ECU operation.

2.1 Weak or Failing Battery

Symptoms: Slow cranking, dim interior lights at idle, surface charge rebound low (<12.4 V after rest). Aging lead‑acid cells lose capacity due to sulfate crystallization and grid corrosion.

Technical Factors:

• Depth of Discharge (DoD) over cycles accelerates plate degradation.
• High ambient temperatures speed up electrolyte evaporation, increasing internal resistance.
• Parasitic drains (e.g., aftermarket alarms, poor BCM design) can deepen self‑discharge above 5 % per week.

2.2 Alternator Malfunction

Symptoms: Battery light stays on with engine running; multimeter shows alternator output <13.0 V at 2,000 RPM; squealing belt noise.

Failure Modes:

• Worn brushes or slip rings reducing rotor field current.
• Open‑circuit or shorted stator winding.
• Diode pack failure causing AC ripple on DC output, detectable with oscilloscope (ripple >0.5 V pk‑pk unacceptable).

🔗 Explore more in-depth OEM guides about alternator at Dardoor:

• Alternator Wiring Diagram: Understanding and Troubleshooting Your Charging System
• Comprehensive Guide to Diagnosing and Replacing Your Vehicle’s Alternator
• Alternator Parts Catalog: Your Complete Reference for OEM and Aftermarket Components

2.3 Faulty Voltage Regulator

Symptoms: Overcharging (>15 V at idle) or undercharging (<13 V) even with good alternator; rapid battery water loss; erratic gauge readings.

Technical Insight: Electronic regulators use closed‑loop feedback to maintain a precise voltage setpoint (±0.1 V). Failures often stem from thermal stress or PCB corrosion.

2.4 Loose, Corroded, or Damaged Cables & Connections

Symptoms: High resistance junctions cause voltage drop under load; touchscreen infotainment resets; diagnostic trouble codes (DTCs) for “B+ Circuit” or “Ground Fault.”

Key Locations to Inspect:

• Battery terminals and clamp hardware.
• Alternator output stud and fusible link.
• Engine block to chassis ground strap.

2.5 Excessive Electrical Load & Parasitic Draw

Symptoms: Light comes on only under high accessory load (e.g., running AC, headlights, stereo maxed); battery SoC drops rapidly overnight.

Analysis: Sum all accessory currents against alternator max output. For example:

If the alternator is rated for only 60 A and the idle speed is low, the effective charging current may dip below the load, tripping the battery warning.

3.1 Multimeter Testing Steps

1. 1. 1. Pre‑test Inspection: Ensure engine off, accessories off, note resting battery voltage (<12.4 V indicates discharge).
      2. Load/Crank Test: With starter engaged, voltage should not drop below 9.6 V.
      3. Running Voltage Test: Warm up engine to operating temperature; rev to ~2,000 RPM; measure at battery terminals:
         • 13.8 V–14.4 V: Normal
         • <13.5 V: Undercharging
         • >14.8 V: Overcharging
      4. Parasitic Draw Test: Disconnect negative cable, insert ammeter in series; <50 mA draw typical with doors/ECU asleep; >100 mA indicates excessive drain.

3.2 Oscilloscope Ripple Measurement

To detect diode pack failure in the alternator, clamp the oscilloscope across the battery. A properly functioning rectifier yields smooth DC with ripple ≤0.1 V. Higher ripple suggests failed diodes or stator issues.

3.3 On‑Vehicle Voltage Regulator Bench Testing

Some regulators can be tested using a variable DC supply: apply 12 V to field terminal, adjust input voltage, and verify regulator holds output within ±0.1 V of setpoint. Consult OEM service manual for pinouts and setpoints.

3.4 Cable & Connector Resistance Check

Use a four‑wire (Kelvin) ohm meter to measure resistance between battery positive post and alternator stud; aim for <0.05 Ω. Higher resistance indicates corroded connectors or undersized wiring.

4.1 Battery Replacement Procedure

1. 1. 1. 1. Park on level ground, engage parking brake, turn off ignition and accessories.
         2. Wear protective gloves and goggles; lead‑acid acid is corrosive.
         3. Disconnect negative (–) terminal first, then positive (+).
         4. Remove hold‑down clamp; extract battery carefully (30+ lb).
         5. Clean tray and terminal clamps with baking soda solution; rinse and dry.
         6. Install new battery, reconnect positive then negative.
         7. Perform post‑install voltage test: 12.6 V at rest, ~14 V running.

4.2 Alternator Removal & Replacement

1. 1. 1. 1. Ensure engine cool, disconnect battery negative terminal.
         2. Loosen belt tensioner, remove serpentine belt from alternator pulley.
         3. Disconnect electrical connectors (field, stator, output).
         4. Remove mounting bolts; extract alternator.
         5. Bench‑test old unit on alternator test bench: confirm field coil continuity, diode pack health.
         6. Install new or rebuilt alternator in reverse order; torque bolts per OEM spec (e.g., 30 Nm).
         7. Reconnect battery, start engine, verify charging voltage and absence of warning light.

4.3 Voltage Regulator Service

On many modern cars, the voltage regulator is integral to the alternator assembly; replacing the alternator replaces the regulator. On vehicles with remote regulators:

1. 1. 1. 1. Locate regulator module (often under dash or near fuse box).
         2. Disconnect wiring harness, remove mounting screws.
         3. Install new regulator; ensure correct orientation and secure mounting.
         4. Test system voltage per section 3.

4.4 Repairing or Replacing Damaged Wiring

If any cable resistance checks fail, follow these steps:

1. 1. 1. 1. Cut out corroded or damaged section of wire and use heat‑shrink butt connectors rated for automotive use.
         2. Crimp with proper tool; solder joints if possible; seal with heat‑shrink tubing.
         3. Apply dielectric grease at connectors to inhibit future corrosion.

4.5 Reducing Parasitic Loads

• • • • Unplug aftermarket accessories when not in use (dash cams, USB chargers).
      • Install a switch or relay harness for high‑draw accessories, isolating them from main load when parked.
      • Use a Battery Management System (BMS) alarm to warn of deep discharge events.
