2005–2009 Subaru Legacy Alignment Tips

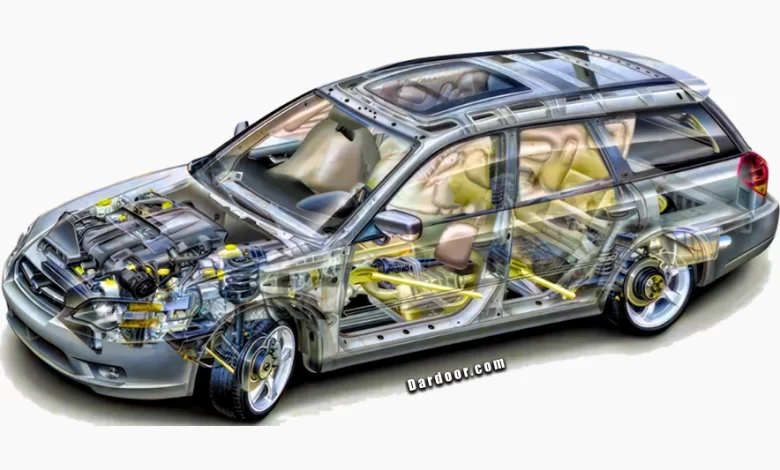

The fourth-generation Subaru Legacy, produced from 2005 to 2009, was offered as both a sedan and a wagon until 2008, when the wagon variant was discontinued. The front suspension features a MacPherson strut design, while the rear utilizes a multi-link setup. The rear suspension is dynamic—it changes toe and camber angles based on suspension travel and body movement.

Common Alignment Issues & Misconceptions

A common theme across online forums regarding Subaru alignment issues is that the vehicle is often not at fault—the problem frequently lies with communication. Many alignment complaints stem from mismatched expectations between the vehicle owner and the technician.

Owners often bring their vehicles in for alignment to address issues like pulling or uneven tire wear. If the technician performs a standard alignment without diagnosing the root cause of the complaint, the owner may feel that the issue remains unresolved. The solution? Start by asking the owner why they are requesting an alignment. Understanding the concern helps ensure the service addresses the real issue.

Subaru’s Recommended Alignment Process

Subaru recommends a Sequential Alignment Procedure to prevent “cross-talk” between camber, caster, and toe adjustments—especially important on the Legacy due to its suspension design.

Step 1: Ride Height Measurement

Begin by measuring the ride height. Ride height affects all alignment angles and must be within spec before proceeding. Measure from the top of the wheel well to the center of the wheel with a full tank of fuel:

• Front: 381 mm (±12 mm)
• Rear:
  • Sedan: 365 mm
  • Wagon: 375 mm (±12 mm)

If measurements are below spec, inspect for collapsed upper strut mounts, bent strut shafts, or worn springs. While broken springs are uncommon on this generation Legacy, they can still occur.

Step 2: Camber and Caster

Front Camber

• Adjustable via factory cam bolts located in the upper strut mount bolt hole.
• If additional adjustment is needed, aftermarket cam bolts provide a greater range.
• If camber is out of spec, inspect the lower control arm bushings for excessive deflection or damage.

Note: Surface cracks in control arm bushings are normal and do not impact performance. Instead of visual inspection alone, test for bushing deflection during suspension movement.

Rear Camber

• Not adjustable.
• Excessive negative camber or abnormal inner tire wear often indicates degraded bushings in the rear suspension links.

Front Caster

• Not adjustable.
• If out of spec, inspect for bent or damaged lower control arms or deteriorated bushings.

Step 3: Toe Adjustment

Toe is the most critical angle on the Subaru Legacy. It should be adjusted last, after ride height, camber, and caster are verified or corrected.

• Front & Rear Toe: Set as close to 0° as possible.
• Rear Toe Adjustment: Achieved using eccentric cams on the inboard mounts of the rear arms.
• Thrust Angle: Ensure it is close to zero to prevent pulling or tracking issues.

Tire Rotation & TPMS

Subaru recommends rotating tires every 7,500 miles.

• Non-directional tires: Use a modified crisscross pattern.
• Directional tires: Rotate front-to-rear only.

After rotation, the TPMS (Tire Pressure Monitoring System) must relearn the new tire positions to function accurately.

Final Thoughts

Aligning a 2005–2009 Subaru Legacy isn’t difficult, but it requires a thoughtful, step-by-step approach and clear communication with the customer. Understanding the interplay between ride height, suspension geometry, and bushing wear is key to achieving precise results and ensuring long-term tire and vehicle performance.
