This is the original OEM Wiring Diagram Manual for the 2017–2025 Genesis G70, provided in a clear and easy-to-use PDF format.
Overview

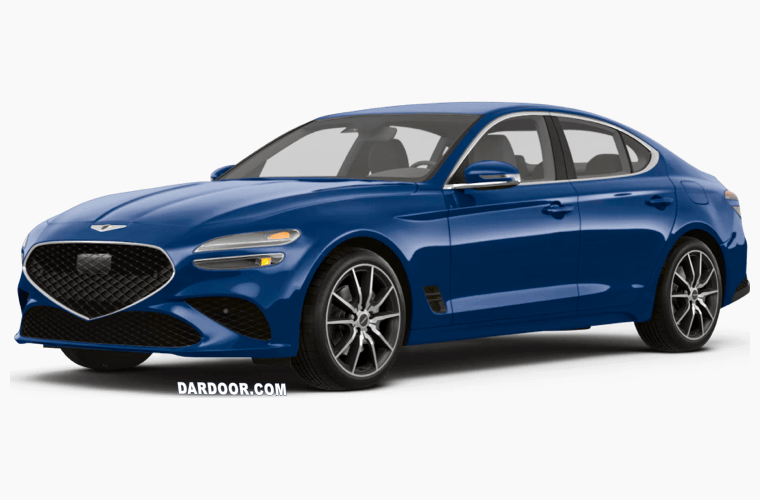

The 2017–2025 Genesis G70 is a compact luxury sports sedan designed to compete with the BMW 3 Series,
Audi A4, and Mercedes-Benz C-Class. Built on a rear-wheel-drive platform, the G70 emphasizes driving dynamics, strong turbocharged engines, and high interior quality at a lower ownership cost than many German rivals.
Technical Specs & Performance
- Body style: Compact luxury sedan
- Drivetrain: RWD or AWD
- Engines:
- 2.0L turbocharged inline-4
- 2.5L turbocharged inline-4 (facelift models)
- 3.3L twin-turbo V6
- Transmissions:
- 6-speed manual (limited trims/years)
- 8-speed automatic
- Horsepower range: ~252 hp to 365 hp
- 0–60 mph (approx.): 4.5–6.0 seconds
Top 10 Common Mechanical Problems (Symptoms, Cause, Fix, Cost)
- Turbocharger wastegate rattle (2.0T / 2.5T)
Symptoms: Metallic rattle under light throttle, reduced boost
Root Cause: Wastegate actuator wear or linkage tolerance issues
Fix: Inspect actuator; replace turbocharger or wastegate assembly if excessive play is found
Cost to Fix: $1,200–$2,800 - Oil consumption (early 2.0T engines)
Symptoms: Low oil level between services, blue exhaust smoke
Root Cause: Piston ring wear or cylinder wall glazing
Fix: Perform oil consumption test; engine repair or short-block replacement if confirmed
Cost to Fix: $2,500–$6,500 - Carbon buildup on intake valves (direct injection)
Symptoms: Rough idle, hesitation, reduced fuel economy
Root Cause: Fuel does not wash intake valves in DI engines
Fix: Walnut blasting or chemical intake cleaning
Cost to Fix: $400–$900 - Transmission hesitation or harsh shifts (8-speed auto)
Symptoms: Delayed engagement, jerky upshifts
Root Cause: Software calibration or adaptive learning issues
Fix: TCM software update; adaptation reset; fluid inspection
Cost to Fix: $150–$600 - Rear differential noise (AWD models)
Symptoms: Whine or clunk during acceleration or deceleration
Root Cause: Premature bearing wear or fluid degradation
Fix: Fluid replacement or differential rebuild
Cost to Fix: $350–$2,200 - Suspension bushing wear
Symptoms: Clunking over bumps, vague handling
Root Cause: Soft rubber bushings wearing prematurely on sport suspension setups
Fix: Replace affected control arm or bushing assemblies
Cost to Fix: $400–$1,500 - Brake vibration / warped rotors
Symptoms: Steering wheel shake under braking
Root Cause: Heat buildup and rotor thickness variation
Fix: Replace rotors and pads; proper bedding procedure
Cost to Fix: $500–$1,200 - Engine mount degradation
Symptoms: Excessive vibration at idle or during shifts
Root Cause: Hydraulic mount fluid leakage over time
Fix: Replace failed engine mounts
Cost to Fix: $600–$1,400 - Cooling system leaks
Symptoms: Coolant smell, low coolant warnings
Root Cause: Hose and plastic fitting aging
Fix: Pressure test; replace leaking components
Cost to Fix: $200–$800 - Manual transmission clutch wear
Symptoms: Slipping clutch, high engagement point
Root Cause: Aggressive driving or normal wear
Fix: Replace clutch and pressure plate
Cost to Fix: $1,200–$2,500
Top 10 Common Electrical Problems (Symptoms, Cause, Fix, Cost)
- Infotainment screen freezing or rebooting
Symptoms: Screen resets, Bluetooth disconnects
Root Cause: Software bugs or head unit memory faults
Fix: Software update or head unit replacement
Cost to Fix: $150–$1,800 - Backup camera intermittent failure
Symptoms: Black or distorted camera image
Root Cause: Camera module or trunk harness fatigue
Fix: Repair wiring or replace camera module
Cost to Fix: $250–$900 - Smart key not detected warnings
Symptoms: Intermittent no-start or warning messages
Root Cause: Weak key battery or antenna module issues
Fix: Replace key battery; diagnose antenna circuits
Cost to Fix: $10–$600 - Battery drain
Symptoms: Dead battery after sitting overnight
Root Cause: Telematics or infotainment modules not sleeping
Fix: Parasitic draw test; module software update
Cost to Fix: $150–$700 - Adaptive cruise control faults
Symptoms: Cruise disabled warnings
Root Cause: Radar sensor misalignment or contamination
Fix: Sensor recalibration or replacement
Cost to Fix: $300–$2,000 - TPMS warning light
Symptoms: Persistent tire pressure alert
Root Cause: Sensor battery depletion
Fix: Replace TPMS sensors and reprogram
Cost to Fix: $200–$500 - Power window malfunction
Symptoms: Window stops or reverses
Root Cause: Regulator motor wear or pinch sensor calibration
Fix: Recalibrate or replace regulator assembly
Cost to Fix: $300–$800 - Digital gauge cluster glitches
Symptoms: Flickering or blank display
Root Cause: Software or internal display faults
Fix: Software update or cluster replacement
Cost to Fix: $400–$2,200 - Seat heater failure
Symptoms: Seat does not warm
Root Cause: Heating element break or control module fault
Fix: Replace seat heater pad or module
Cost to Fix: $300–$1,000 - Lane keep assist warning errors
Symptoms: Driver assistance unavailable message
Root Cause: Camera calibration loss or windshield replacement
Fix: ADAS camera recalibration
Cost to Fix: $250–$1,200
Pros & Cons
| Pros | Cons |
|---|---|
| Strong value compared to German rivals | Resale value lags established luxury brands |
| Excellent driving dynamics | Limited rear seat space |
| Long factory warranty | Infotainment software issues |
| Powerful V6 option | Fuel economy below class average |
Maintenance Schedule
| Interval | Service |
|---|---|
| 5,000–7,500 miles | Engine oil & filter |
| 15,000 miles | Tire rotation, brake inspection |
| 30,000 miles | Cabin & engine air filters |
| 60,000 miles | Transmission & differential fluid inspection |
| 100,000 miles | Spark plugs, coolant replacement |
Top 5 Competitors
Recalls, Advisories & TSB Highlights (Top 10)
- Fuel pump failure causing engine stall
- Turbo oil feed line leakage
- ABS module software update
- Airbag control module recall
- Rear seat belt pretensioner recall
- Infotainment software campaign
- Rear camera image loss recall
- Electronic parking brake software update
- Radar sensor calibration advisory
- Battery management system update
Frequently Asked Questions
Is the 2017–2025 Genesis G70 reliable?
Yes, overall reliability is above average, especially when properly maintained. Most issues are software- or turbo-related rather than major drivetrain failures.
Which engine is the most reliable?
The 3.3L twin-turbo V6 has shown strong long-term durability when oil changes are done frequently.
Is the Genesis G70 expensive to maintain?
Maintenance costs are generally lower than German competitors but higher than non-luxury sedans.
Does the G70 have transmission problems?
Most complaints involve shift quality, usually resolved with software updates rather than hardware failures.
Is the Genesis G70 a good used car?
Yes, especially due to depreciation and remaining warranty coverage on newer used models.
Final Verdict
The 2017–2025 Genesis G70 is one of the best value propositions in the compact luxury sports sedan segment. It delivers strong performance, premium materials, and solid reliability while undercutting German rivals on price. Buyers should prioritize service history, software updates, and turbocharger health, but overall ownership satisfaction is high.
Disclaimer: This guide is informational and does not replace the factory service manual or dealer diagnosis. Always verify recalls by VIN and follow manufacturer service procedures.
